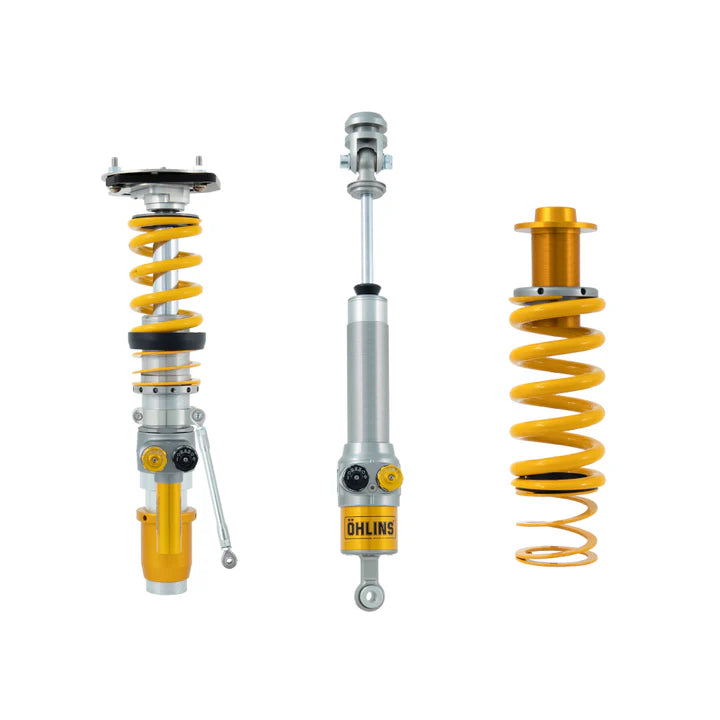

Öhlins TTX-Pro Coilover Suspension System BMW M3 (E9X) 2008–2013

The Öhlins TTX-Pro suspension system for the BMW M3 E9X is engineered for drivers who demand true motorsport technology in a track-focused, road-capable package. Developed from Öhlins’ professional TTX racing dampers, this system delivers exceptional grip, consistency, and feedback—ideal for club-level racing and serious track use while remaining compliant enough for the drive home.

Built around Öhlins’ pressure-balanced TTX technology, the dampers maintain consistent performance across all adjustment ranges without relying on excessive nitrogen pressure. This results in a wide, usable tuning window with no cavitation and precise, repeatable damping control. Each application is shake-rig and track validated, then dyno matched to ensure balanced handling and predictable response.

Fitment

• BMW M3 E90 / E92 / E93 (2008–2013)

Suspension Specifications

Front

• Independent ride height and spring preload adjustment

• Target ride height: 10–25 mm lower than OE

• Spring rate: 140 N/mm

Rear

• Ride height adjustable

• Target ride height: 10–25 mm lower than OE

• Spring rate: 200 N/mm

Included Components

• 2-way fully independent compression & rebound adjustment (separate clickers)

• Öhlins main springs with helper springs

• Millway spherical bearing front camber plates

• Öhlins rear upper mounts (Tab design)

• Adjustable front stabilizer bar links

Notes & Accessories

• EDC cancellation kit required only for vehicles originally equipped with OE electronic dampers (sold separately)

  • Öhlins EDC Cancellation Kit: 35020-04

• EDC bracket kit available separately

• Spare parts support available

  • Öhlins kit number: BMV MU11S1

Key Features

• Proven TTX motorsport damper technology

• Pressure-balanced design for consistent damping at every setting

• Lightweight, high-strength aluminum damper construction

• Upgradeable to 3-way or 4-way adjustment

• Fully rebuildable for long-term serviceability

• Corrosion resistance tested to ISO 9227 standards

• 2-year limited warranty

Why Choose Öhlins TTX-Pro

Compared to conventional coilovers, the TTX-Pro system offers reduced unsprung weight, superior grip, and unmatched suspension feel. The result is increased driver confidence, faster lap times, and precise control under braking, cornering, and curb impacts. For E9X M3 owners seeking uncompromised track performance with genuine race-derived engineering, the Öhlins TTX-Pro is the benchmark.
