07-13 BMW M3 (E9X) Race-Spec Oil Cooler - 8025

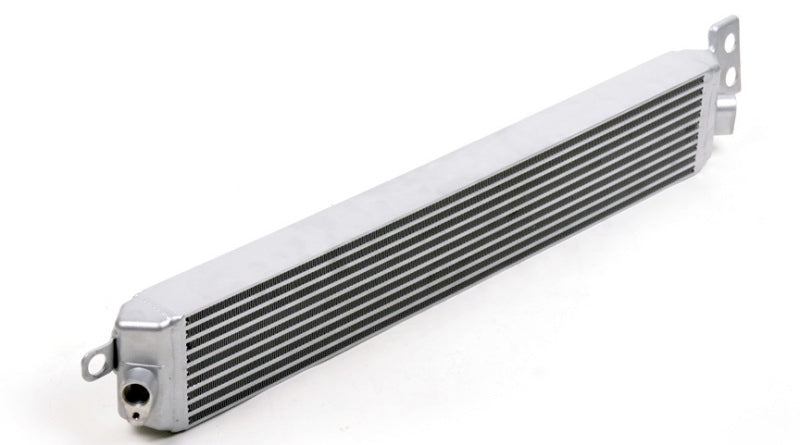

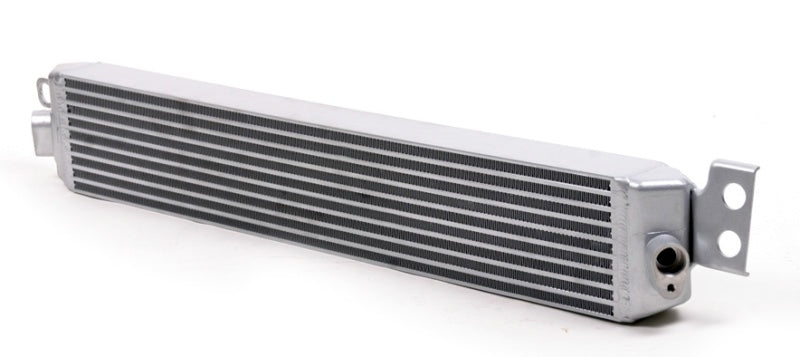

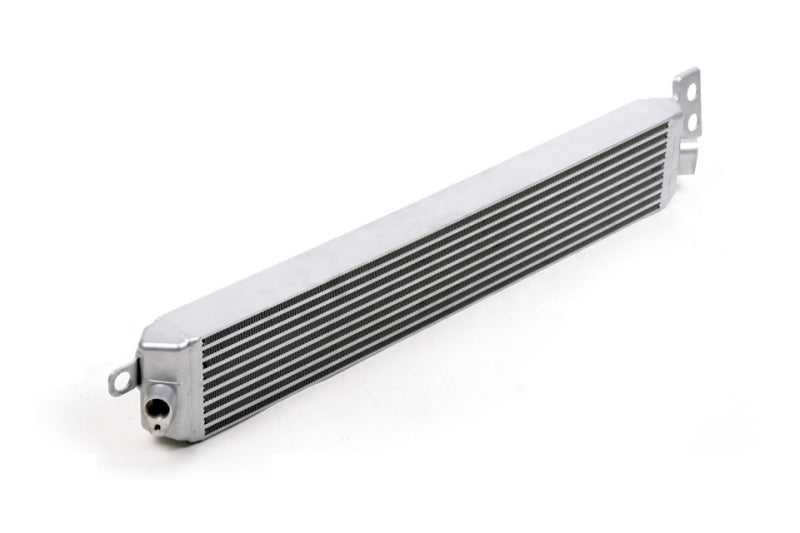

The CSF 8025 Race-Spec Oil Cooler is a true performance upgrade for the E9X M3, engineered to deliver increased cooling capacity and long-term reliability under hard street or track use. Developed in collaboration with VF Engineering, this cooler is designed as a true drop-in replacement that installs without modification and retains OEM-style fitment.

Unlike the factory cooler’s mechanically joined construction, the CSF unit features a fully TIG-welded, cast end-tank design for superior durability. The tapered cast end tanks are shaped to match the OEM bumper contour for clean, factory-like packaging—without interfering with aftermarket splitter fitment.

Key Features

• Drop-in fit (no modifications required)
  Accepts OEM oil-line connections, mounting brackets, and shroud/ducting.

• No shroud cutting required
  Noted as the only market option designed to install without cutting the shroud.

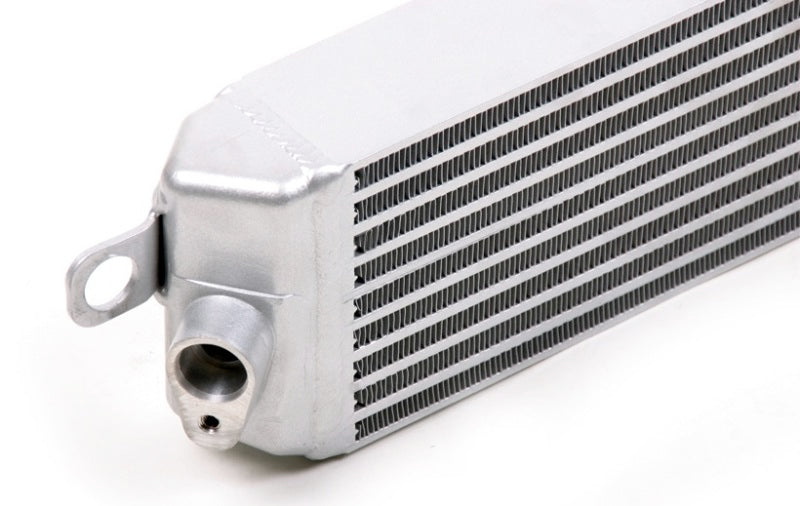

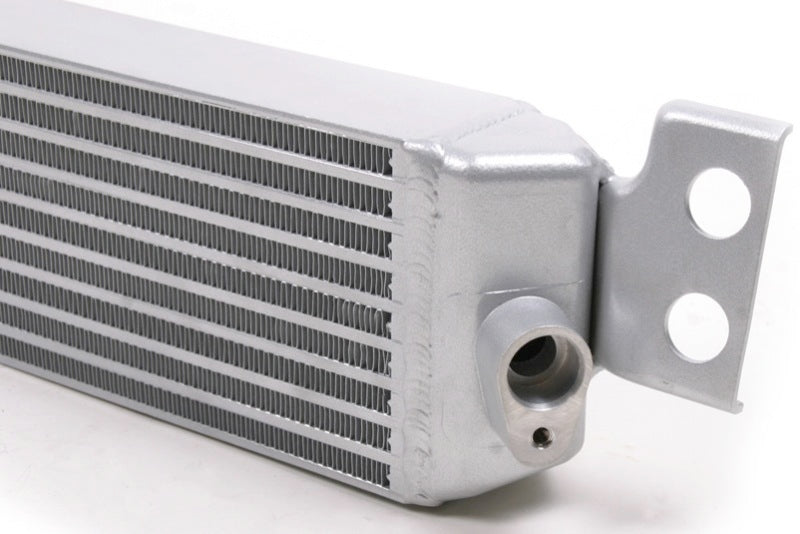

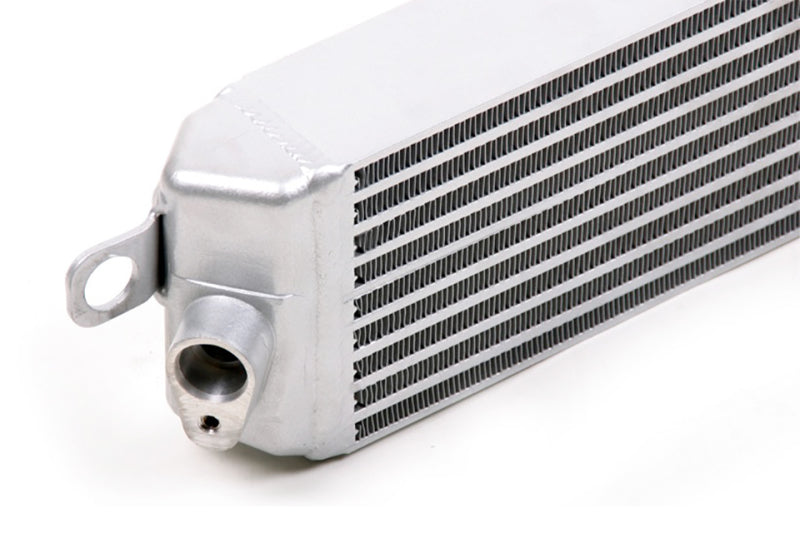

• Fully TIG-welded cast end tanks
  More robust than OEM mechanically jointed/tack-welded design.

• Tapered end-tank geometry
  Matches OEM bumper contour; compatible with common splitter setups.

• Heavy-duty bar-and-plate core (turbulated)
  Built for durability and consistent oil temperature control.

• 8-row core with high-density multi-louvered fin design
  Maximizes heat exchange capacity.

• Motorsport silver finish

Fitment

• BMW M3 (E90/E92/E93) – 2007–2013

• Part number: CSF 8025

Important Oil Line Note (Early vs. Late Production)

For vehicles built on or before 03/2008, BMW superseded the oil lines and the earlier lines are physically different. The CSF 8025 is designed for later-spec oil lines. If your car has early lines, you may need to update them.

Early Cars (≤ 03/2008)

• HOSE 1: 17222283417

• HOSE 2: 17222283418

• O-RING: 2 × 17212283511

Later Cars

• HOSE 1: 17222284077

• HOSE 2: 17222284078

• O-RING: 2 × 17222284079
