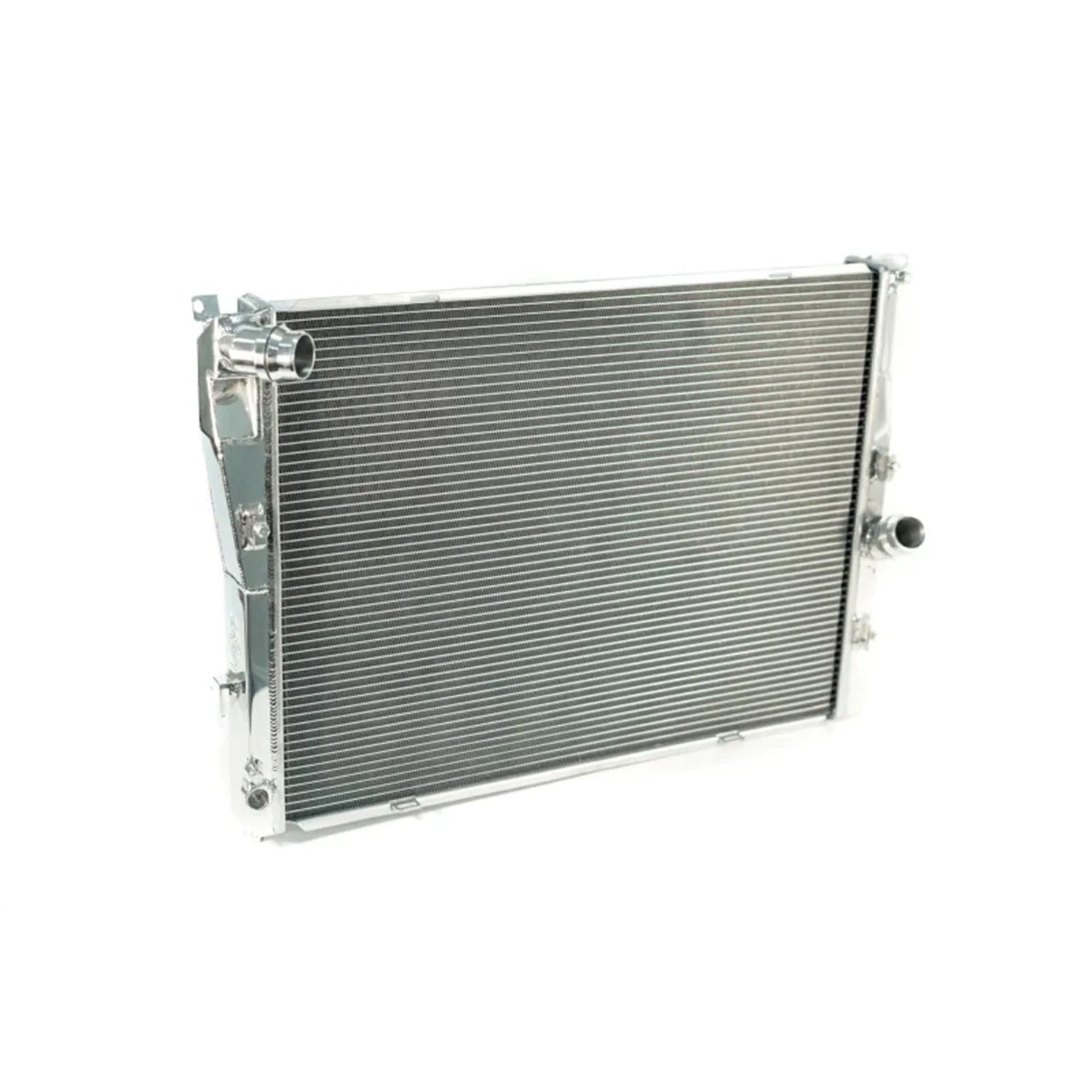

Aluminum Triple Pass Radiator - BMW M3 (E90/E92)

The CSF Triple Pass Radiator is a purpose-built cooling upgrade for the E90/E92 M3, designed to reduce coolant outlet temperatures and increase thermal stability under aggressive street driving, track use, or high-heat environments. Built around a high-efficiency core and a triple-pass flow layout, this radiator forces coolant to traverse the core three times before exiting, maximizing heat rejection where the factory single-pass layout can become a limitation.

Constructed with a 2-row, 42mm dual-core design and CSF’s B-tube technology, the core is paired with an ultra-efficient multi-louvered fin structure to increase surface contact and cooling efficiency. Installation is straightforward thanks to OEM-style connections and a true drop-in fit.

Key Features

• 2-row 42mm dual-core with CSF B-tube technology

• Ultra-efficient fin design
  6.5mm fin height with a multi-louvered structure for maximum surface area contact

• Triple-pass flow design
  Coolant crosses the core 3 times for lower outlet temperatures and improved heat management

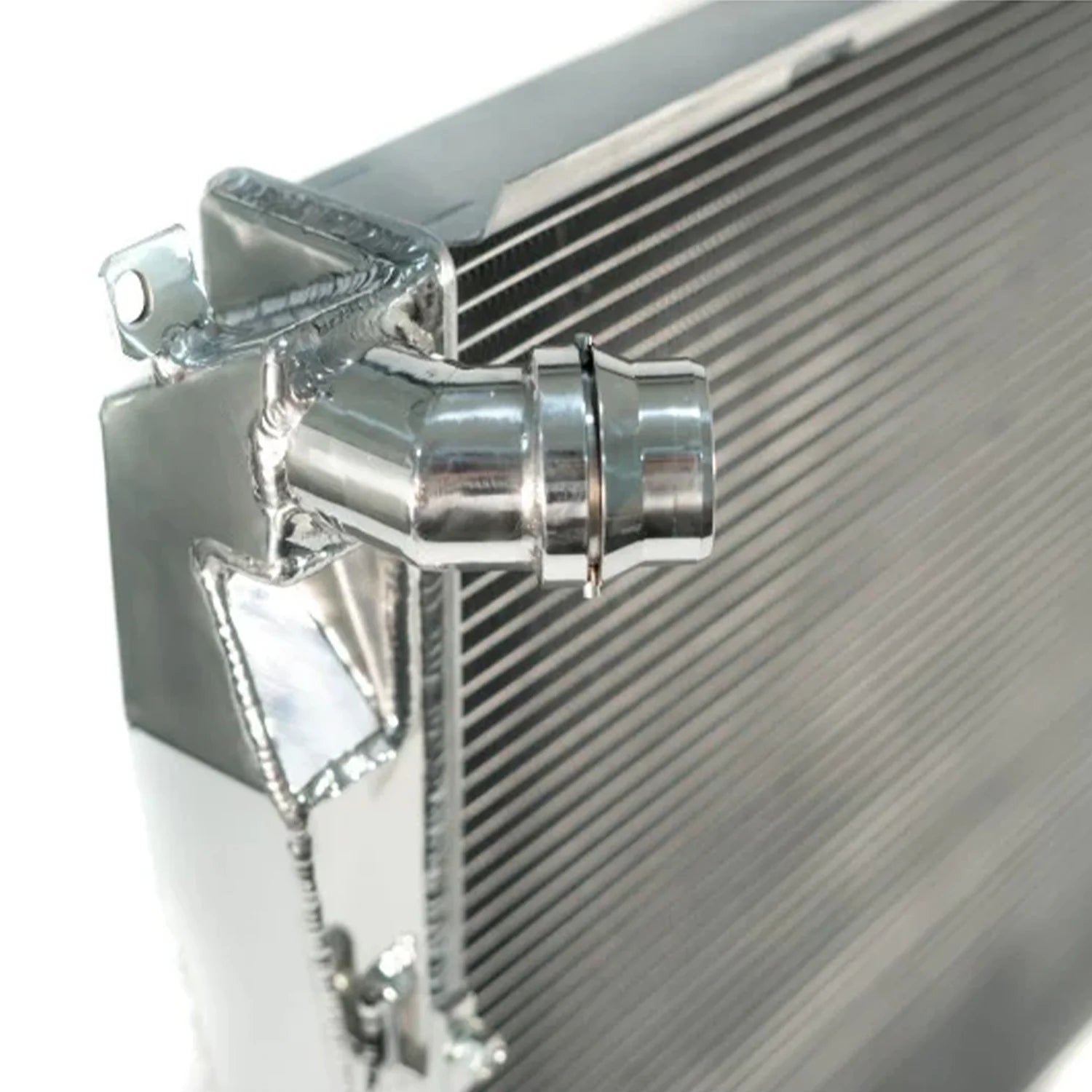

• CNC-machined quick-connect inlet/outlet connections
  Retains OEM-style hose fitment

• CNC-machined brackets and fittings
  Improved durability and precise fit

• All-aluminum race-style drain plug

• Hand-polished “mirror finish” (approx. 1-hour finish process)

• True drop-in fitment
  No modifications required; accepts OEM quick-connect hoses, A/C condenser, mounting brackets, and fan shroud

Fitment

BMW M3 (E90/E92/E93)
