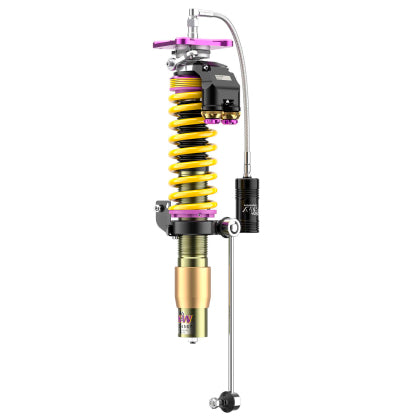

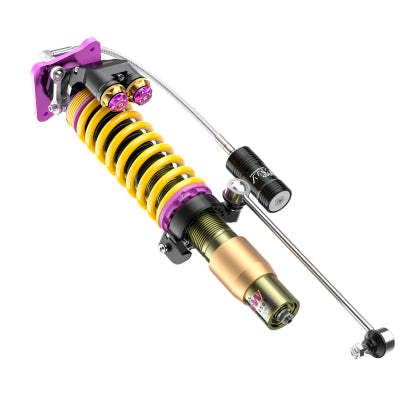

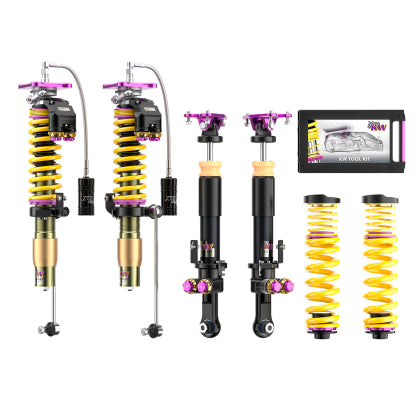

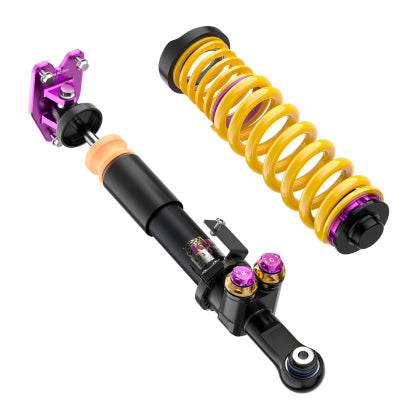

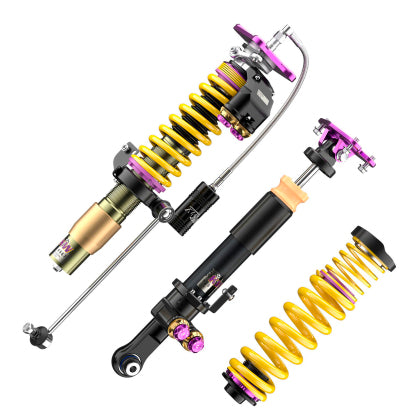

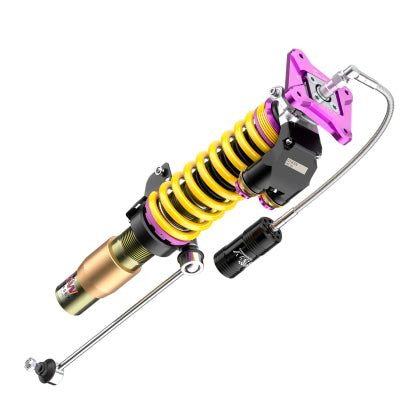

KW V5 Clubsport 4-Way M2/M3/M4 G8X + EDC Delete Kit

The KW V5 Clubsport is a 4-way adjustable, semi-slick-ready coilover system built around KW’s latest Solid Piston GT3 motorsport technology. Designed for the sportiest road cars and aggressive track use, the entire package (including uniball bearings) is engineered to stay composed under high load, heavy curb strikes, and fast transient inputs, while remaining usable on the street.

Fitment & Compatibility (RWD)

• BMW M3 (G80) — 2WD

• BMW M4 (G82) — 2WD

• BMW M2 (G87) — 2WD

Solid Piston (GT3-Derived) Technology

KW’s Solid Piston design separates the adjustable compression and rebound valve assemblies from the damper tube/piston rod, delivering:

• More sensitive, high-frequency damping

• Cavitation-free performance

• Low-pressure gas operation: 6–10 bar

• Improved chassis support during aggressive steering, braking, and compression events

Damping Adjustment (4-Way)

• Low-speed compression: 13 clicks

• High-speed compression: 13 clicks

• Low-speed rebound: 13 clicks

• High-speed rebound: 13 clicks

Ride Height & Hardware

• Seamless lowering with tested adjustment range

• Aluminum uniball support bearings

• Height adjustability supports corner balance / wheel-load tuning
