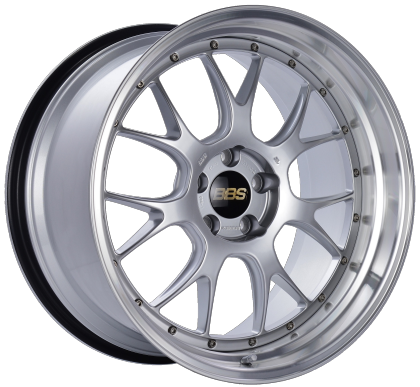

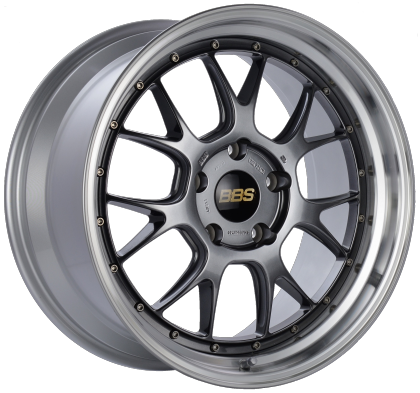

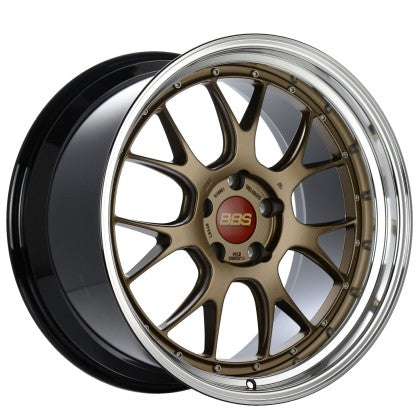

M3/M4 F8X BBS LM-R 20" Wheel Set

The BBS LM-R is a motorsport-derived forged wheel engineered for drivers pushing the limits of performance. Built using BBS’s proprietary multi-stage die-forging process, each wheel is produced under extreme pressure to maximize strength while minimizing weight. The LM-R takes the classic LM design and reinforces it for higher loads, making it ideal for aggressive street builds and track-focused applications.

This 20" staggered configuration is designed for F8X M3 / M4 platforms seeking a wider, more aggressive stance with increased track width and enhanced grip potential.

Fitment & Specifications (F8X M3 / M4)

• Front: 20 × 9.5 ET23

• Rear: 20 × 11.0 ET40
• Bolt Pattern: 5 × 120
• Center Bore: 72.6 mm
• Construction: 2-piece die-forged aluminum
• Brake Clearance: Clears carbon ceramic brakes
• Weight
  • Front: 26.2 lbs
  • Rear: 27.0 lbs

Additional Details

• FEM-optimized forged construction for high stiffness-to-weight ratio

• BBS multi-stage die-forging process (up to 18 million lbs of pressure)

• Reinforced LM-R design for higher performance loads

• Finish selectable via product options

Fitment Notes

Lowered vehicles, aggressive camber settings, or wide tire setups should verify inner and outer clearances before installation. For tire sizing, alignment recommendations, and a complete wheel and tire package tailored to your build, contact us, and we’ll spec it correctly.
