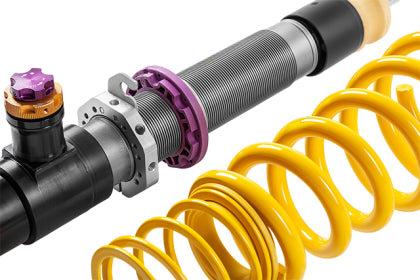

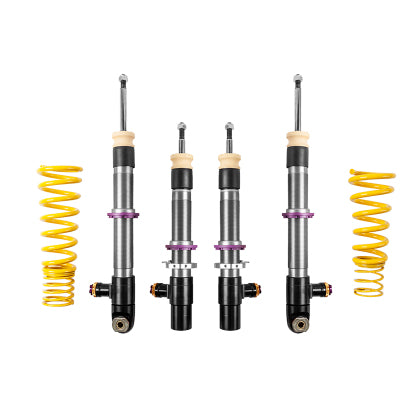

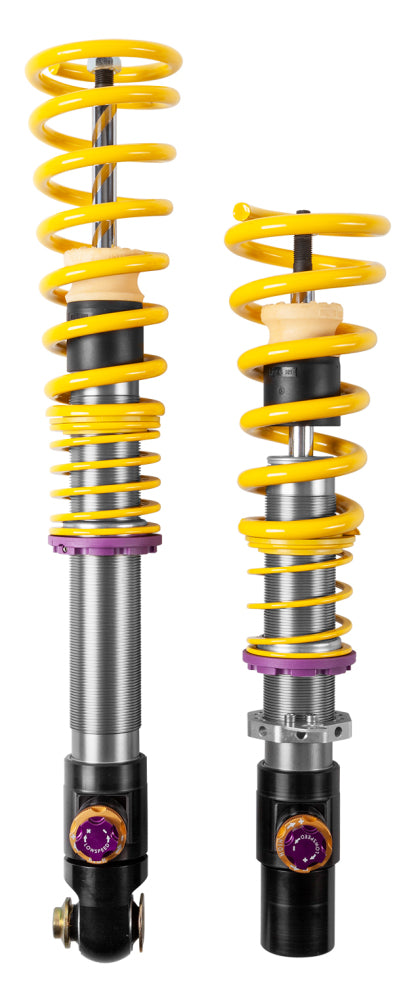

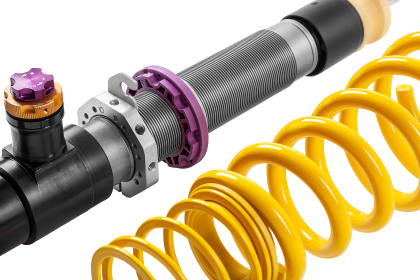

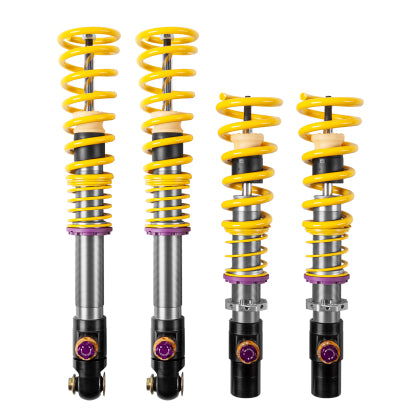

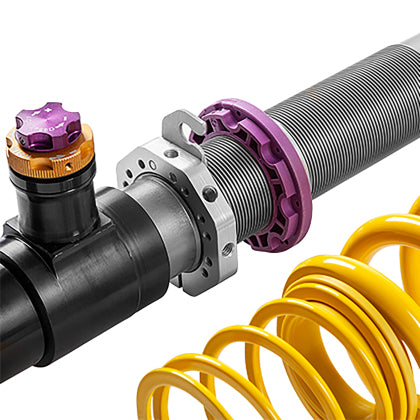

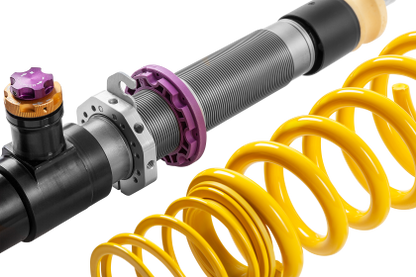

The KW Variant 4 (V4) Coilover Kit is KW’s 3-way adjustable suspension solution for high-performance sedans like the F90 M5, combining race-proven damper tech with street-focused spring and valve tuning. V4 allows you to fine-tune chassis balance and stability with independent adjustment of rebound, low-speed compression, and high-speed compression, making it ideal for owners who want one setup that can be dialed for comfort or sharpened for aggressive driving.
This specific part number is the “w/o EDC Modules” version, meaning it does not include the electronic cancellation modules.
Fitment
-
BMW M5 F90
-
Includes ESC / EDC cancellation modules: No (w/o ESC Modules)

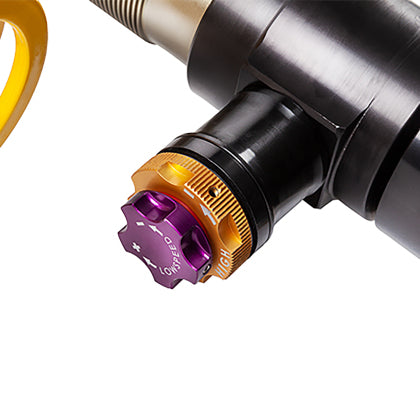

Damping Adjustability (3-Way)
-
Rebound (TVR-A): 16 clicks
-
Low-Speed Compression (TVCLH-A): 6 clicks
-
High-Speed Compression (TVCLH-A): 14 clicks

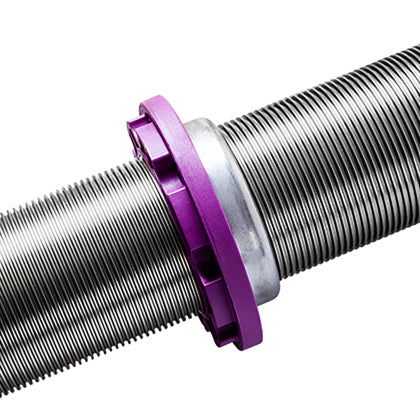

Height Adjustment Range
-
Front: 0.6" – 1.2"
-
Rear: 0.4" – 1.2"
Key Features
-
3-way adjustable high-performance dampers
-
Separate, independent adjustment for rebound and compression (low/high speed)
-
Two baseline setups: comfort-oriented starting point + performance-oriented setup direction
-
Hand-built in Fichtenberg, Germany, with a unique serial number per kit
-
Dyno-tested dampers and preset to KW’s recommended baseline settings before shipping
-
Top mounts:
-
Front / Rear: OE / OE
-
OE top mounts are not included
-
