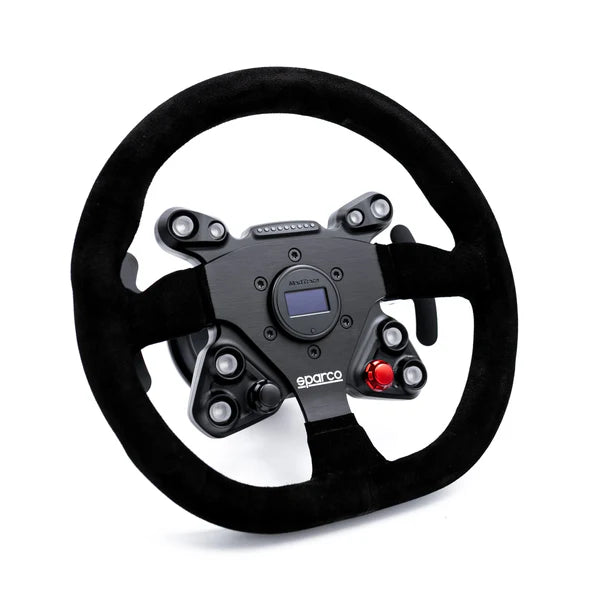

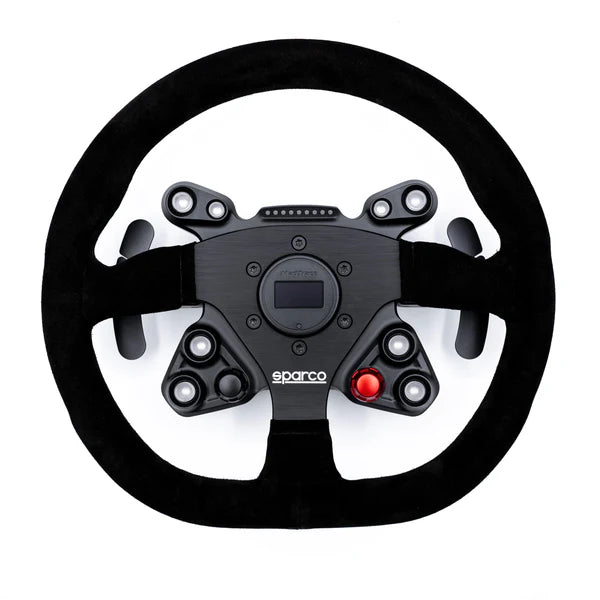

MadTrace E9X M3 GEN2 PODIUM Racing Steering Wheel System

Madtrace® GEN2 PODIUM Line Racing Steering Wheel System

BMW M3 E9X (E90 / E92 / E93)

The JQ Werks Madtrace® GEN2 PODIUM Line Racing Steering Wheel System represents the most advanced steering control solution available for the BMW E9X M3 chassis equipped with factory M steering wheel buttons. Designed for serious track and competition use, the PODIUM Line integrates CAN bus and LIN bus technologies into a single control hub, delivering unmatched OEM functionality with a completely wireless, plug-and-play installation—no splicing, no cutting, no permanent vehicle modification.

This system is engineered to transform the cockpit into a true motorsport environment while maintaining seamless communication with factory electronics.

Materials & Construction

• 6061-T6 billet aluminum, precision-machined using advanced 5-axis CNC processes

• High-strength, lightweight design optimized for racing applications

• Black anodized finish for durability, corrosion resistance, and a refined motorsport aesthetic

• Matching adapter hub and quick-release system, manufactured from the same aircraft-grade aluminum for structural consistency and long-term reliability

Advanced CAN & LIN Bus Integration

Exclusive to the PODIUM and FORMULA product lines, the integrated CAN + LIN bus architecture unlocks 40+ additional OEM vehicle functions (chassis-dependent), all accessible directly from the steering wheel—without altering factory wiring.

Supported functions may include:

• Turn signals

• High beam flash

• Windshield wipers

• Traction control and chassis adjustments

• Shift light activation

• Additional vehicle-specific controls

All functions are handled internally through the Madtrace hub, preserving OEM electronics integrity.

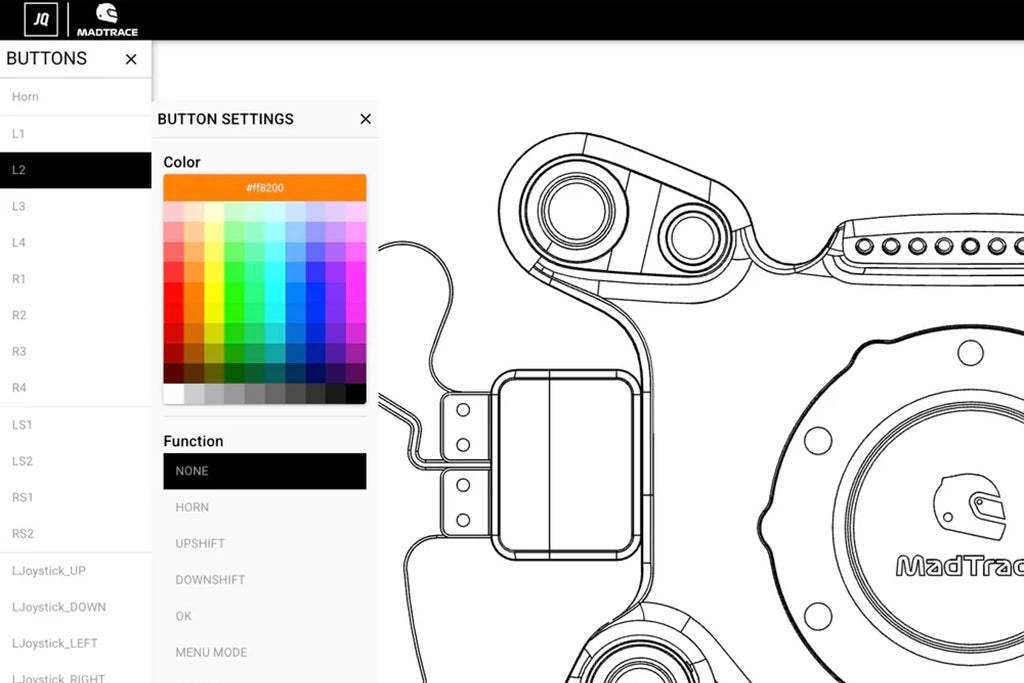

MadtraceLAB™ 1.0 Software

The PODIUM Line is fully configurable via MadtraceLAB™, providing a centralized platform for:

• Button layout configuration

• Firmware updates via integrated USB-C port

• Profile creation and management

• Future feature expansion support

All settings can be adjusted either through MadtraceLAB™ or the optional Driver Information Display (DID).

Multi-Profile Button Mapping

The hub features internal memory for up to three independent profiles, allowing instant adaptation to different vehicles or driving conditions.

Each profile can store:

• Button assignments

• Dual joystick knob functions

• RGB LED color layouts

Example configurations:

• Profile 1: M1 / M2, Cruise Control, Bluetooth, Cluster Menu (white backlighting)

• Profile 2: Traction Control Off, Turn Signals, Wipers, Sport Modes (red backlighting)

Quick Profile Switching

A rear-mounted profile selector enables rapid switching between profiles—updating button mappings and LED colors instantly without stopping or connecting external devices.

RevLEDs CAN Bus Shift Light System

Integrated RevLEDs shift lights provide real-time RPM feedback through the CAN bus:

• Sequential LED illumination as redline approaches

• Full red flash at optimal shift point

• Ultra-low latency response for precision gear changes on track

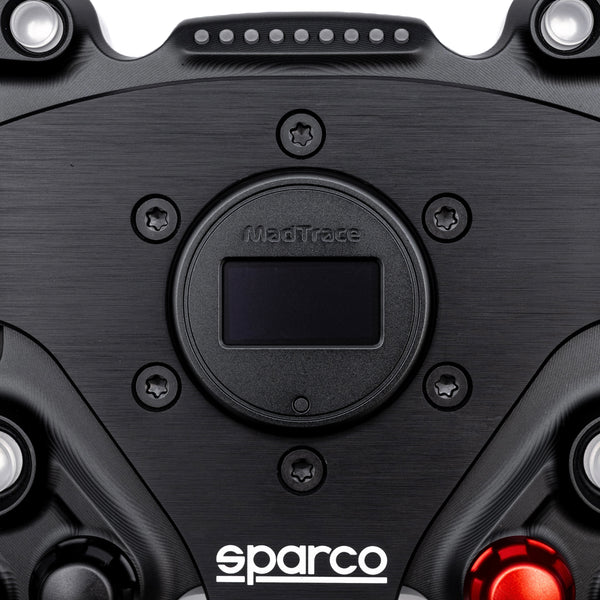

Optional OLED Driver Information Display (DID)

The optional OLED DID module replaces the standard horn cap and adds:

• Real-time telemetry display (vehicle speed and system data)

• On-the-fly button remapping

• Profile switching without a computer

• Direct control of RGB button lighting and display brightness

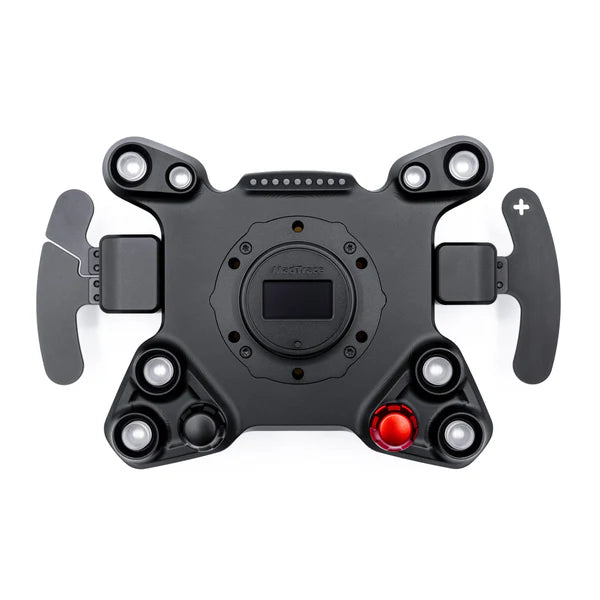

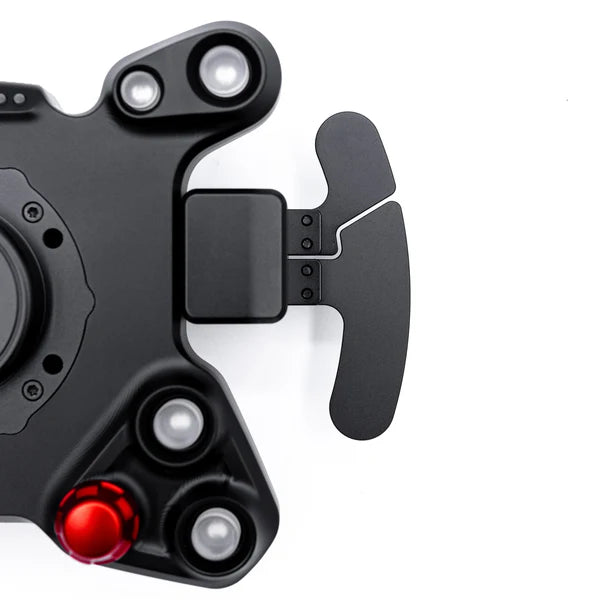

Optional Dual Paddle Configuration

An available dual-paddle upgrade adds two additional programmable paddles:

• Machined from 6061-T6 billet aluminum

• All four paddles fully configurable via MadtraceLAB™

• Suitable for manual transmissions or auxiliary functions

Example setup:

• Upper paddles: turn signals

• Lower paddles: gear shifting

Important Safety & Legal Notice

• For off-road, track, and competition use only

• Not legal for street use or vehicles subject to safety inspection

• Factory airbag is removed; improper use may result in serious injury

• 6-point racing harness and roll bar/cage are strongly required

• Always verify compliance with local regulations before installation

What’s Included

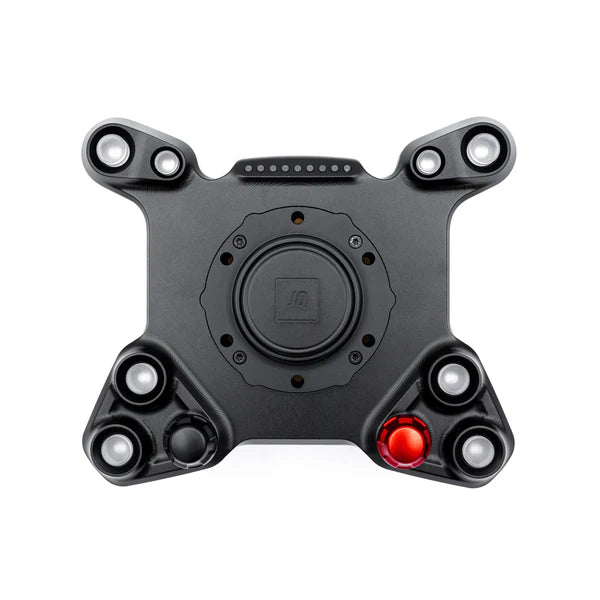

• PODIUM Line Control Hub Unit

• Quick-Release Base with Integrated Chassis PCB

• CAN Bus Integration Module

• Complete Plug-and-Play Harness Kit

• Resistor

• Adapter Hub

• Adapter Hub Locking Wrench

• Trim Removal Tool

• Hardware Kit & Allen Key

• Button Sticker Set

• JQ Werks / Madtrace Decal Set

Vehicle Compatibility

• BMW M3 E90

• BMW M3 E92

• BMW M3 E93

The GEN2 PODIUM Line is engineered for drivers who demand uncompromised control, factory-level integration, and professional motorsport functionality, built to perform at the highest level where it matters most.
