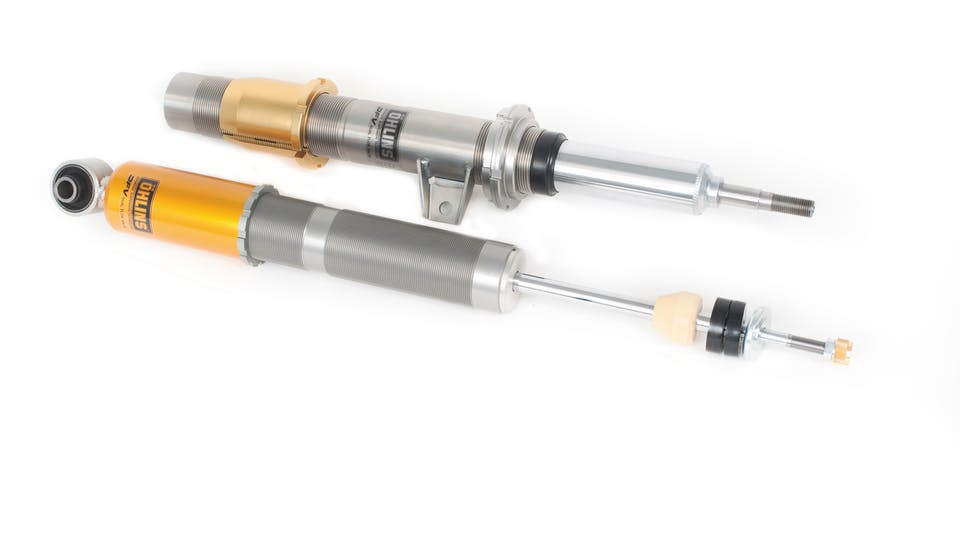

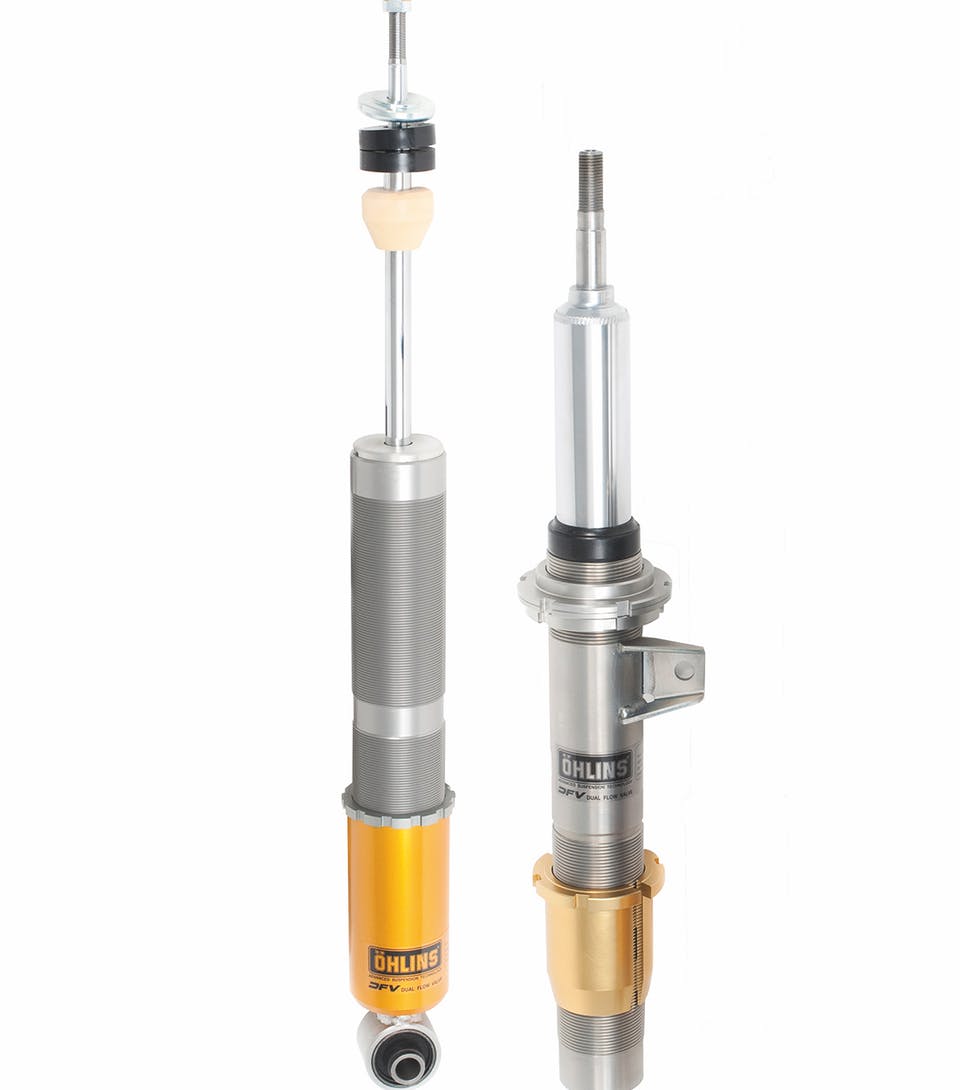

Öhlins Road & Track Coilover System (DFV) – BMW M3 (E9X) 2008–2013

The Öhlins Road & Track suspension is built for drivers who want real performance on track without sacrificing comfort on the street. Using Öhlins’ Dual Flow Valve (DFV) technology, this system delivers sharp chassis response, improved bump control, and noticeably higher mechanical grip—while still riding properly for daily use.

DFV is designed to react quickly to surface changes, helping the car stay composed over bumps and curbing instead of skipping off-line. Adjustment is simple: the single “gold” adjuster on each damper changes compression and rebound behavior together, allowing you to move from a comfortable street setup to a more track-focused setting in seconds.

Fitment

• BMW M3 (E90 / E92 / E93) | 2008–2013

Key Technology

• DFV (Dual Flow Valve) technology

• Height adjustable

• Rebuildable

• Corrosion salt spray tested (ISO 9227)

Front Specifications

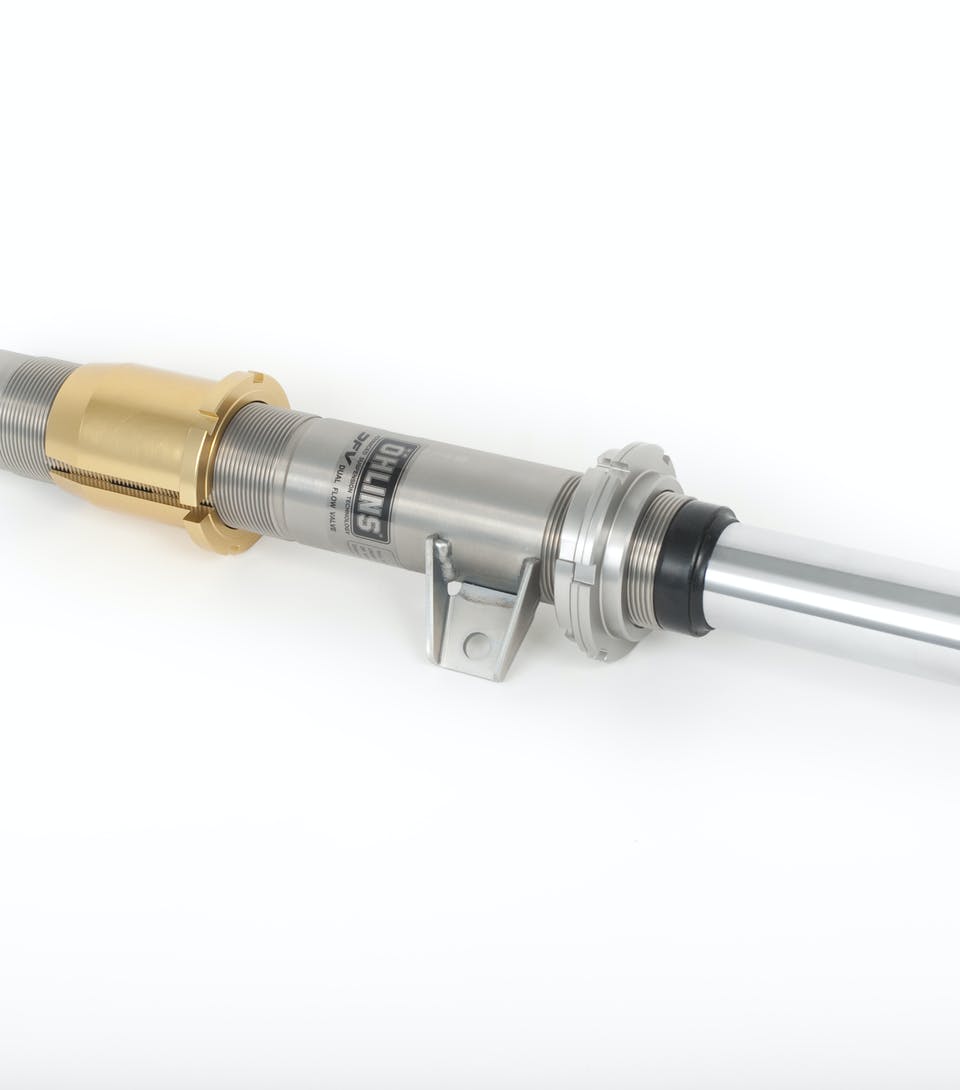

• McPherson strut, inverted (upside down) design

• Single adjuster controls compression + rebound

• Spring preload adjuster

• Recommended lowering range: approx. 5–35 mm

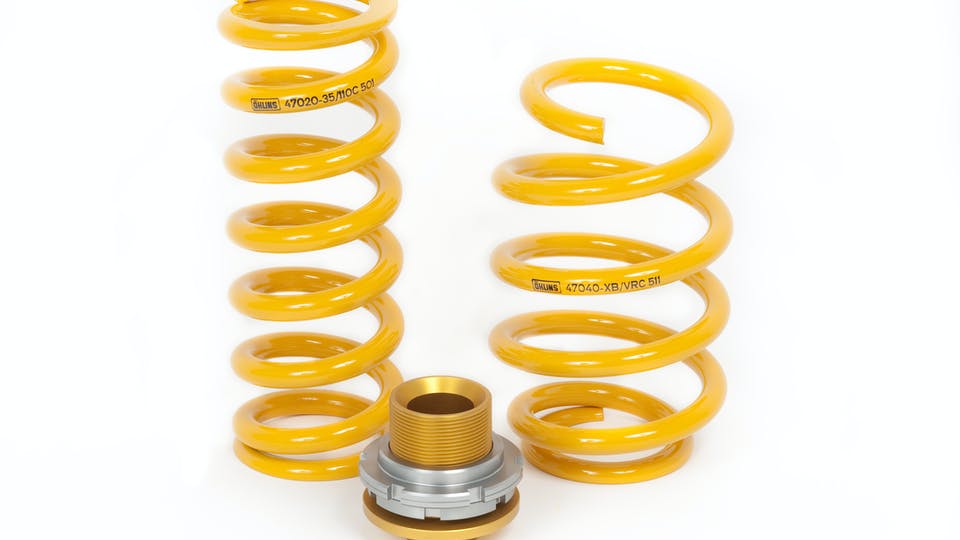

• Spring rate: 60 N/mm

• Dustcovers included

• Uses original top mounts

Rear Specifications

• Conventional rear shock absorber

• Single adjuster controls compression + rebound

• Spring preload adjuster

• Recommended lowering range: approx. 5–35 mm

• Spring rate: 120 N/mm

• Dustcovers included

• Uses original top mounts

Additional Options

• Öhlins EDC Cancellation Kit (for cars originally equipped with OE electronic dampers)

  • Part number: 35020-04 (not included)

What’s Included

• Complete coilover kit with springs

• C-spanner for spring preload adjustment

• Owner’s manual + mounting instructions

A perfect choice for E9X M3 owners who want a suspension that can handle commutes and backroads confidently, then tighten up for track days with minimal effort—without turning the car into a harsh, uncomfortable build.
