Description
DEVELOPMENT

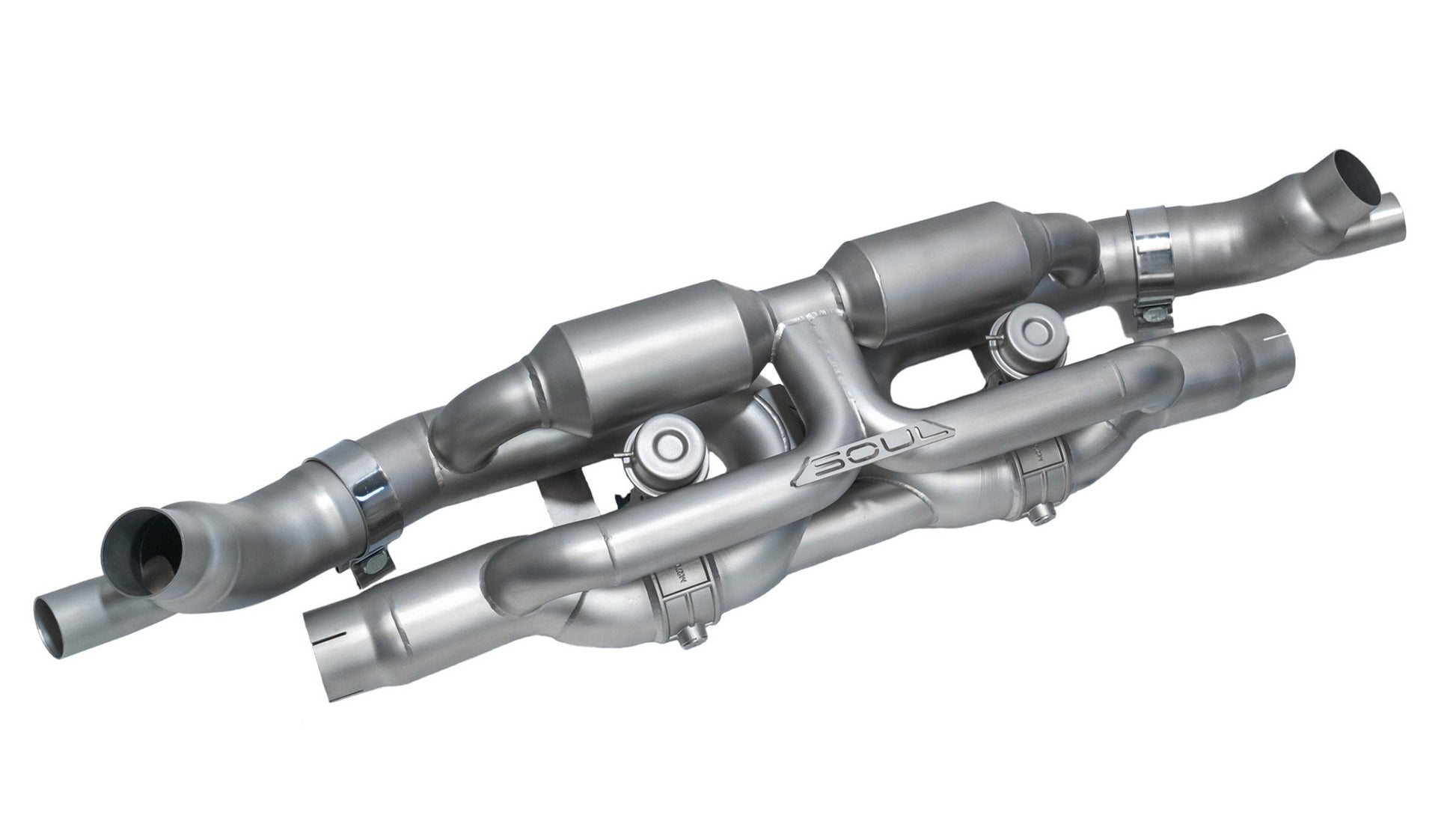

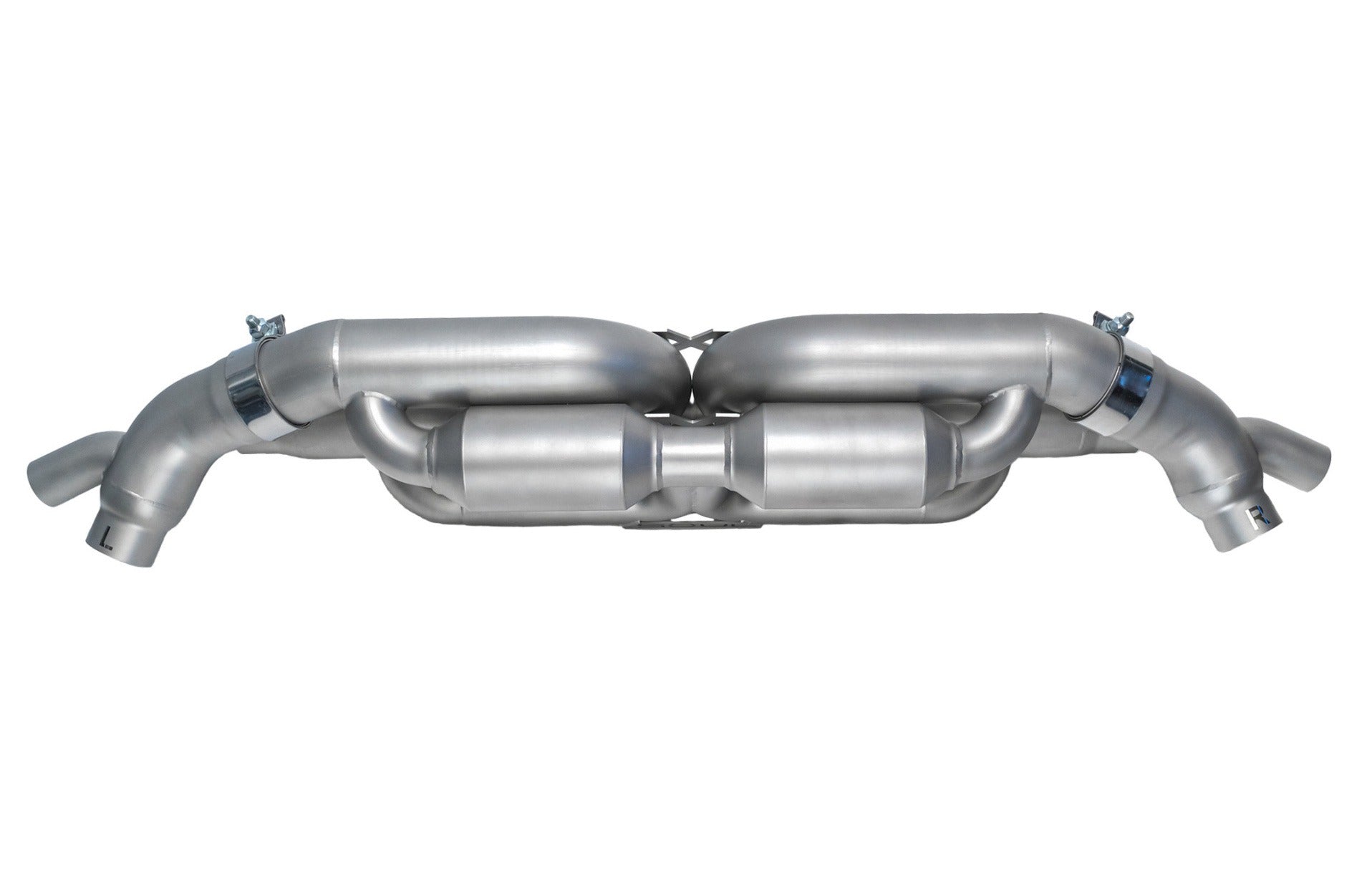

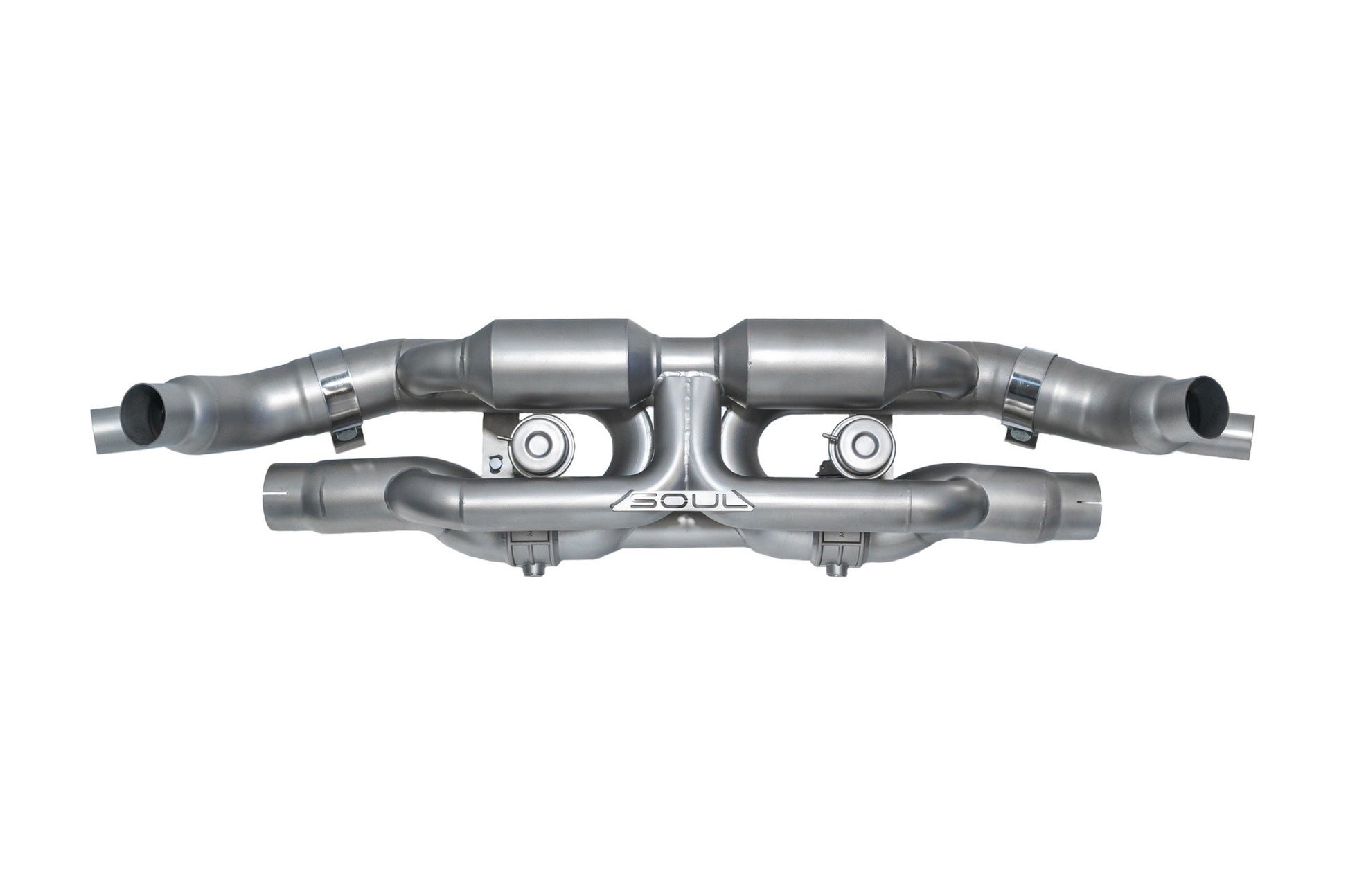

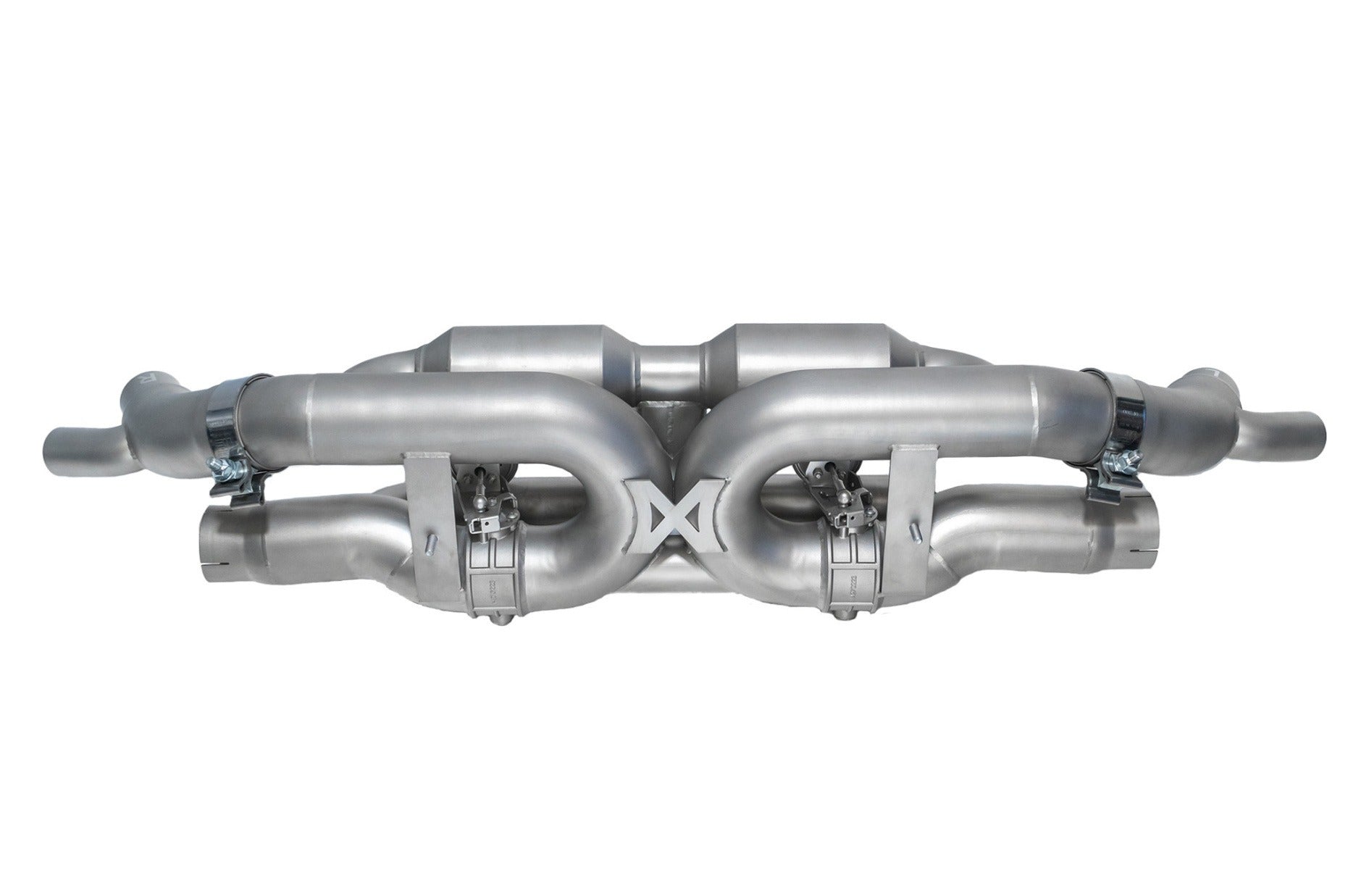

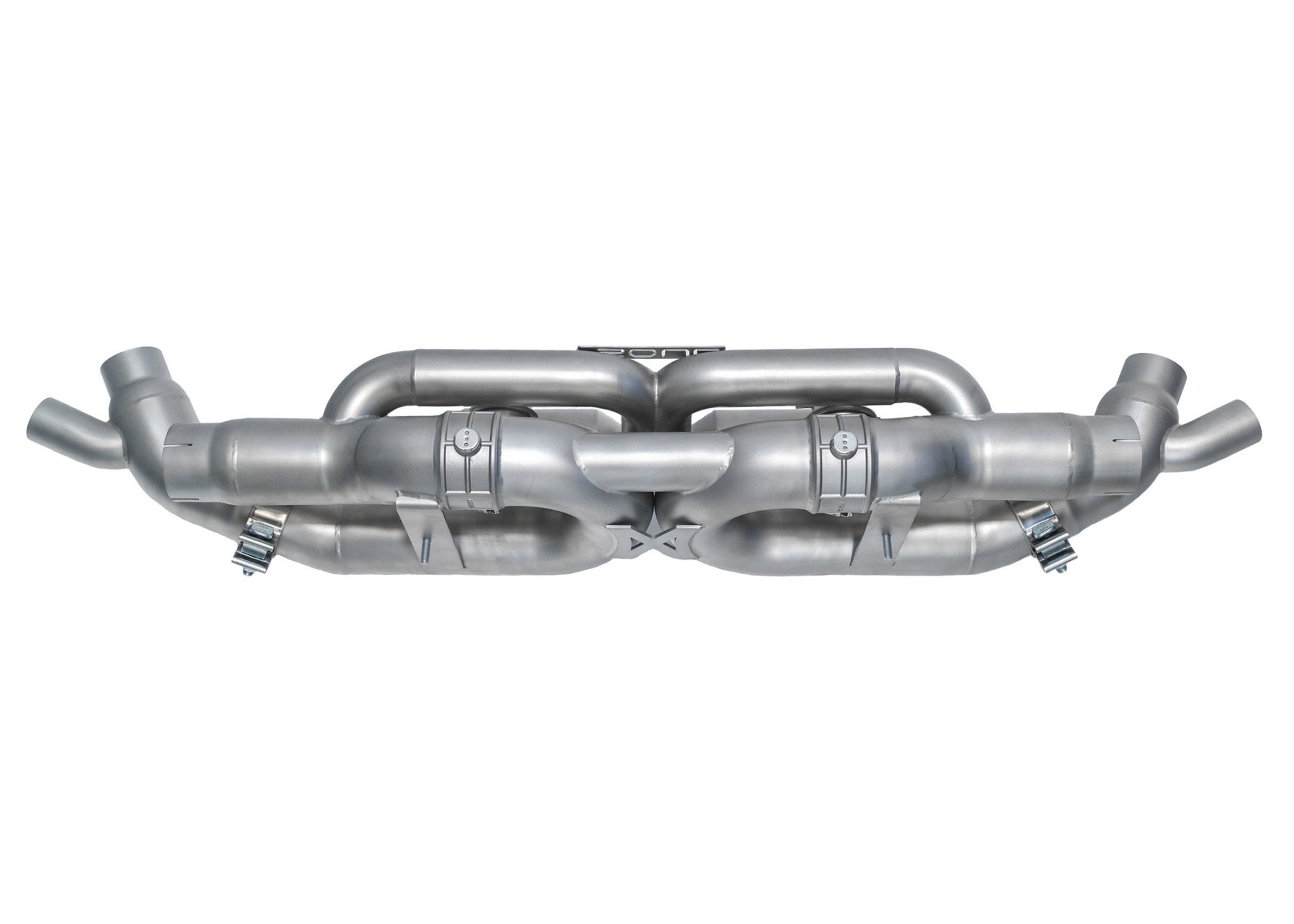

Before Porsche began implementing valved exhausts into the Turbo 911s, they were known for their muted exhaust note, to meet customer expectations on cabin sound and European sound regulations. Our goal in developing the 991 Turbo Valved Exhaust System was to create the ultimate solution for enthusiasts seeking precision sound control and enhanced performance. Our system features a meticulously engineered dual-path design. When the valves are closed it creates a quiet yet rich experience, ideal for low-profile cruising or adhering to strict track sound limits. Opening the valves unlocks a larger 3″ primary flow path, maximizing performance while producing a bold tone.
The factory exhaust design presents limited space for incorporating a muffler into the secondary flow path. Simply reducing tubing diameter to manage sound levels would have a minimal impact, so we took a more innovative approach. We start our secondary flow path with smaller piping which flows into oversized resonators. These resonators work in harmony to significantly suppress sound levels, smooth out unwanted drone, and cancel exhaust pulses, resulting in a subdued and refined exhaust note at low RPMs. Despite the reduced sound levels in this configuration, the overall flow is still improved over the factory muffler, delivering a seamless blend of enhanced performance and discreet operation. When it’s time to turn up the theatrics, the system’s engaging sound profile is just a switch away.
To ensure a tangible delta between valves open and valves closed, we deviated from our traditional blended x-pipe design as we found that didn’t provide enough volume when combined with a secondary flow path. After numerous prototypes and revisions, we opted for a tuned length primary flow path blended with a balance pipe. This design allows for a more noticeable sound difference between valves closed and valves open. Compared to a GT2 RS style dump pipe (direct from cat to the bumper) this offers a much more refined tone and less mechanical sound from the valves operating.
In the end our product matched all of the parameters we were seeking:
- A noticeable difference between valves closed and valves open
- A comfortable and quiet valves closed experience
- An aggressive yet refined valves open experience
HAND-CRAFTED CONSTRUCTION
Mandrel bent, durable .065″” T304L stainless steel tubing
Using next-generation metal 3D printing technology, we engineered 316L stainless steel sections to deliver optimum flow paths through the system
Optional premium SOUL designed 300 cell catalytic converter with custom specced precious metal catalyst coating and triple metal matrix core
Back purged TIG welding (with ARCAL™ Prime argon gas) ensures proper weld penetration for exceptional strength and longevity
Water jet cut brackets are made to ISO 9001:2015 standards with ultra-tight tolerances of +/- 0.003 inches for extreme precision
Fabricated using thick-gauge aluminum fixtures that act as a heat sink during the welding process to prevent any warpage
INTEGRATION
The factory 991 Turbo exhaust system is non-valved and as the vehicle lacks vacuum lines like older Porsche Sport Exhausts and electronically controlled motors – valve operation cannot be controlled by a “PSE” button or by changing driving modes. We include a Valve Controller Kit to offer full manual control over the valves. Valve operation can be controlled either via the included fobs or by pairing the fob to the HomeLink buttons.
BOLT ON AND GO
Each product is tested in a fixture to ensure perfect fitment then foam packed to ensure it arrives in perfect condition with all necessary hardware for installation.
LIFETIME WARRANTY
Enjoy your SOUL exhaust components with confidence on both the street and track as they are covered by our Lifetime Warranty! Our team will quickly work with you to resolve any questions or issues that you may have.
